靈活可移動的隔音艙,猶如偉大的集裝箱,
在限定的尺寸內發揮出強大的空間創造力。

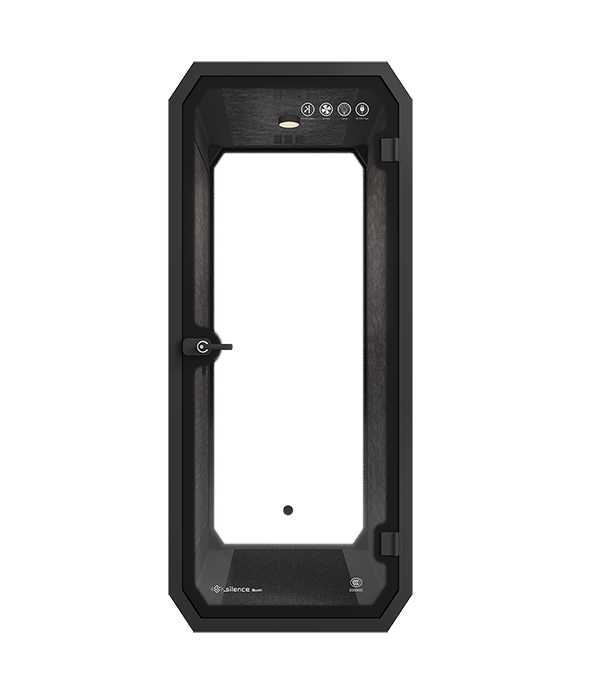

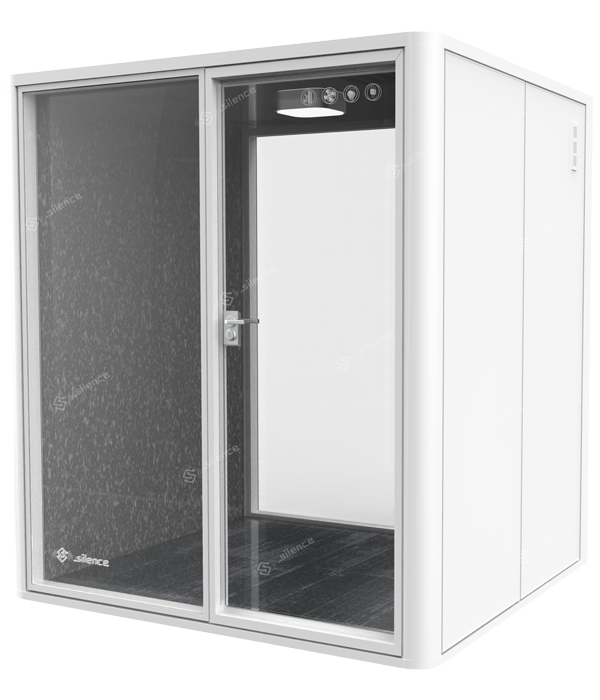

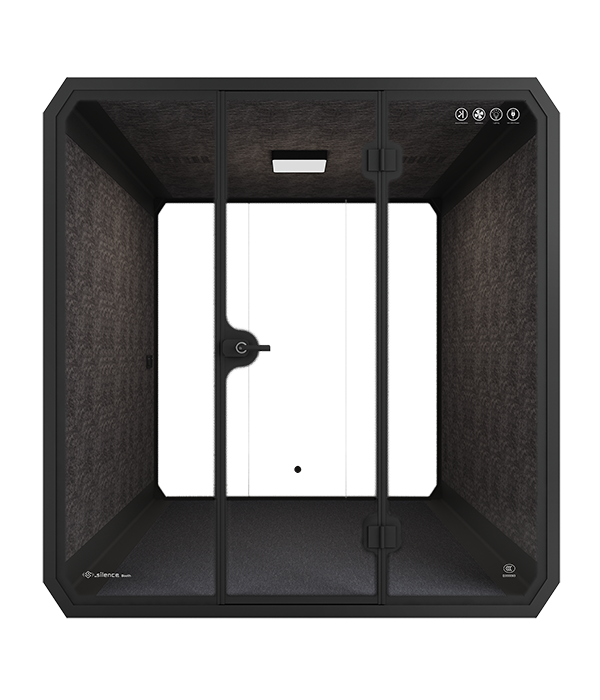

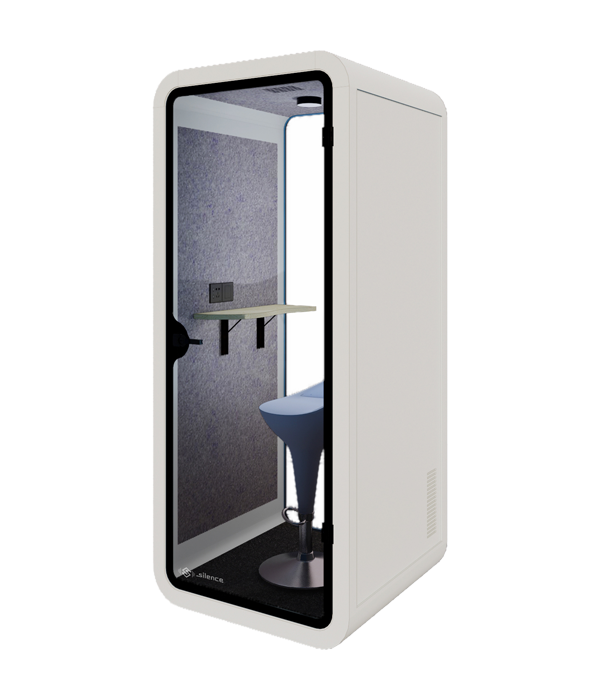

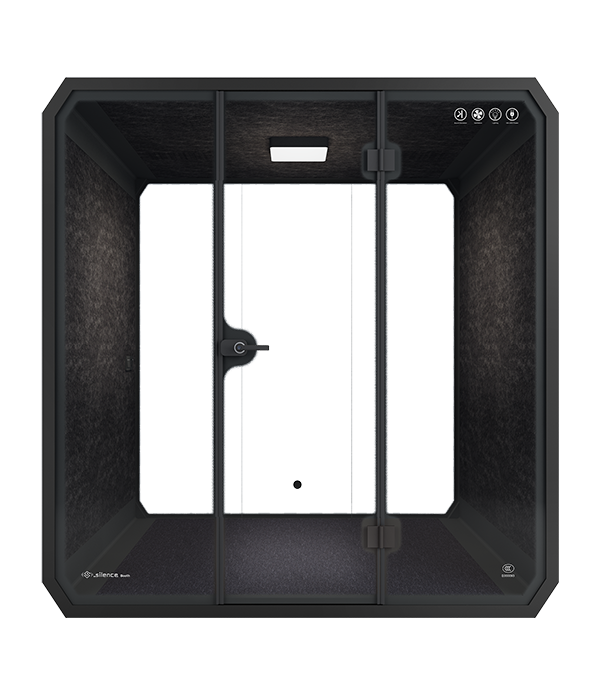

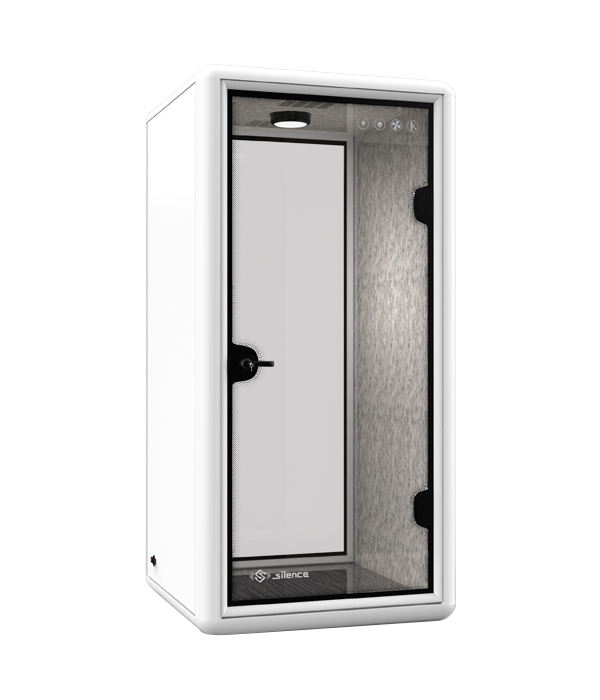

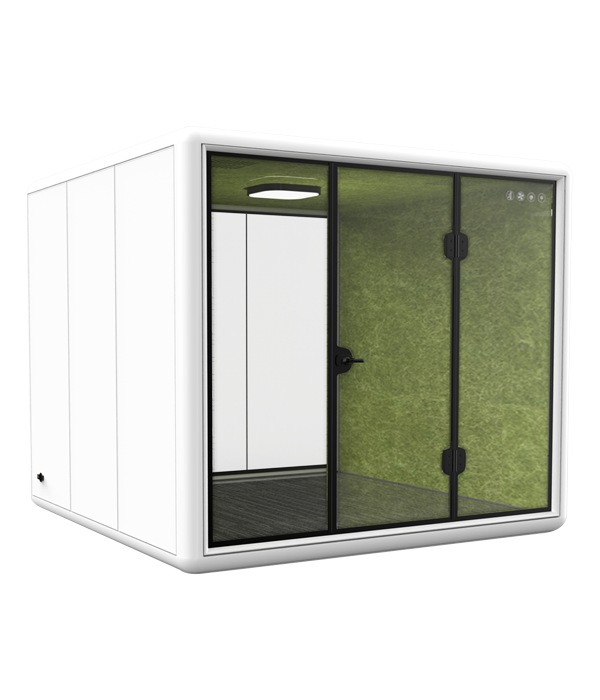

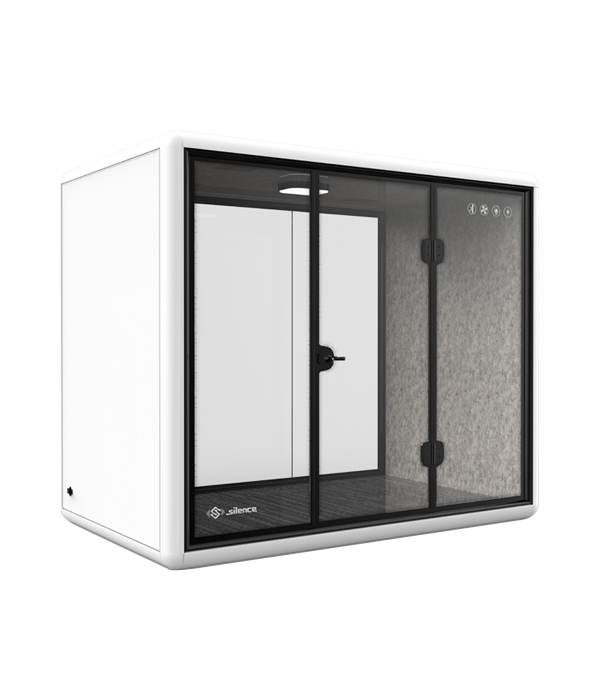

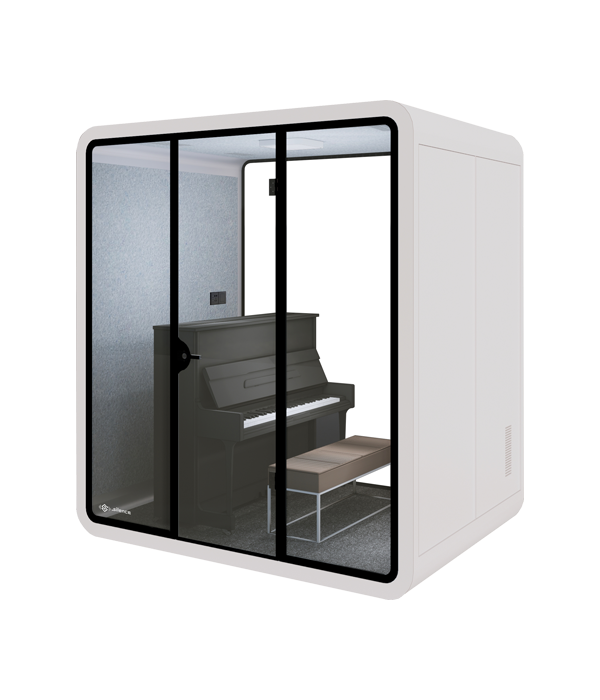

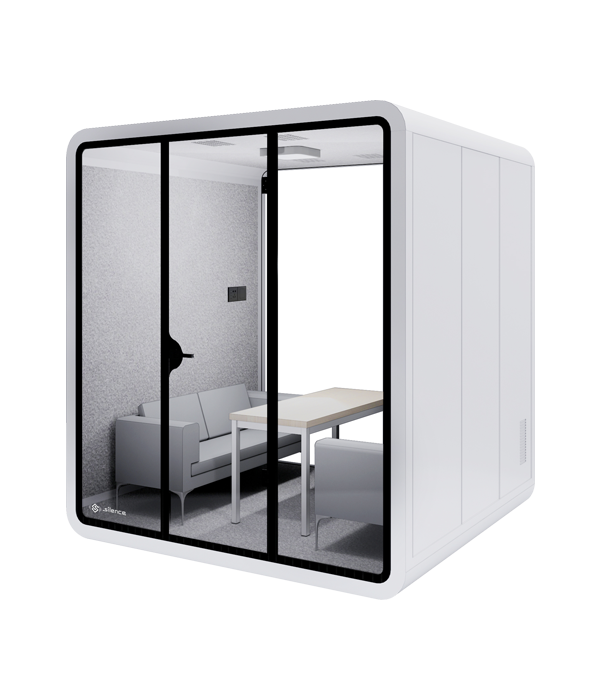

Silence Booth provides you a private and
comfortable place to do your creative works.
靈活可移動的隔音艙,猶如偉大的集裝箱,
在限定的尺寸內發揮出強大的空間創造力。
Silence Booth provides you a private and
comfortable place to do your creative works.
多重聲障式的設計解決漏音問題的同時,大大降低了新風系統的噪音,減少了艙室內外的聲交互,每三分鐘便可完全更新一次艙內空氣。
The air in the booth can be circulated in three minutes, to ensure it won't be stuffy in the booth.
隔音艙采用38mm厚的雙層鋁蜂窩板,鋁板表面貼有高密度阻尼隔音氈以達到隔音需求,內飾搭配聲學材料以到達聲環境的指標。設計值RW+Ctr35dB(±5dB)和RT0.25(±0.1s)
Our booth is made of 38mm thick double-layer aluminum honeycomb panel. Design value: Rw+Ctr 35db(+5db)and RT0.25s(+0.1s).
艙室4000K自然光色溫LED中央照明系統,標配150LX光照滿足常態使用需求,專業光照要求艙內預置可擴充電源。
Equipped with 4000K daylight color temperature LED lighting system150LX), it would satisfy the needs of normal activities.
Professional lighting requires a preset expandable power supply in the cabin.
適配100-240V/50-60Hz和12VーUSB電源供應系統,符合艙內外主流設備器材和能源環境使用。三控開關分別控制一個照明燈及兩個排氣扇。
Our booth is equipped with 12V-USB power supply and power rated for100-240V/50-60HZ, complying with common equipment requirements. The three control switches control one lamp and two exhaust fans respectively.
魔術貼綁帶應用于聲學材料背面的安裝,環保、無味依據《進出口染色紡織品和皮革制品中禁用偶氮染料的檢驗方法》標準進行檢測,符合歐洲ROHS標準。穩固、快捷的安裝便于后期的循環利用。
Magic tape band is used for the back side installation of acoustic materials. It is environmentally friendly and odourless, comply with European ROHS standard
隔音艙采用列車式的隔音鋼化玻璃,符合隔音要求的同時,滿足安裝和使用的安全性和穩定性。
Our booth adopts train type sound insulation tempered glass, which meets the requirements of sound insulation and meets the safety and stability of installation and use.
我們采用定制尺寸的尼龍地毯,每個艙體只需一塊地毯滿鋪。嵌入式的安裝方式保證艙內地面的水平,不易滑動。同時,尼龍地毯擁有良好的吸音性能,滿足我們對聲學設計的要求。
We use custom-made nylon carpet, which only needs one piece of carpet for a booth. The embedded installation method ensures the level of the booth floor and is not easy to slide. At the same time, nylon carpet has good sound absorption performance, which can meets our requirements for acoustic design.
